Motorized Curtain Solutions
Features
Flexible, super silent design
The motor applies 3 patented silent technologies, operation noise is low to 30dB. Intelligent soft start and soft stop function enhanced the performance of quiet and flexible.
Memory function
The opening and closing stroke points are automatically set, and the best stopping position is easily reserved and memorized. It protects the components from being bumped and causes noise or damage, prolongs the service life of the system, and the stroke has a memory function even a power failure, it is intelligently designed.
Stroke memoried function even power off
The industry’s original "flash save" function, the motor will automatically save the current operating information at the moment of power failure. It prevents the curtain track from being pulled indiscriminately during a power off, and the curtain system will not bump left and right when the power is turned on again, which can increase the service life of the bump left and right when the power is turned on again, which can increase the service life of the track system by 40%.
Touch to go
The mechanical clutch structure realizes the power-off hand-pulling function. When the power is off, it can be opened and closed by pulling it by hand, like ordinary manual curtains. When the power is on, the curtain can be gently pulled in one direction like 5cm, then the curtains will automatically open or close.
Stop on block
When the fabric meets any physical block, the curtain will stop automatically to protect the whole system.
Fabric rebound journey correction
When the fabric rebounds a little due to compression, the motor will memorize the position as the new limit position automatically. The curtain looks natural and more beautiful.
Third limit position
Besides the running journey limit position, you could also set the third limit position anywhere within the journey. Manage the natural light according to your personal preference. Create a comfortable living environment to live in.
Speed Adjustable
The motor has a speed adjustment button; you could adjust the running speed according to your application.
Support Multiple motors online working
The standard interface supports the online control of multiple motors, and each can be controlled by an external manual switch, and can be connected to a computer for centralized control.
Various control options
You could choose wireless, wired or RS232/485 communication according to your actual use; wide range of applications.
| Product Series | Product Name | Model | Rated Torque | Speed | Motor Size | Rated Power | Functions |
|---|---|---|---|---|---|---|---|
| UM75 | AC Flexible quite curtain motor | UM75-1.5/100-EM-P | 1.5 N.m | 16 cm/s | 316×68×53 mm | 65 W |
✔ Speed adjustable
✔ Manual Switch function
✔ Touch to go
✔ Stop on block
✔ Various control options
✔ Wide Voltage power supply
✔ Group control
✔ Flexible super silent design
✔ Fabric rebound journey correction
✔ Support multiple motor online working
|
| AC strong electric quite curtain motor | UM75-1.5/100-EM-QP | ||||||
| 5 Wire flexible quiet curtain motor | UM75-1.5/100-EM-GP | ||||||

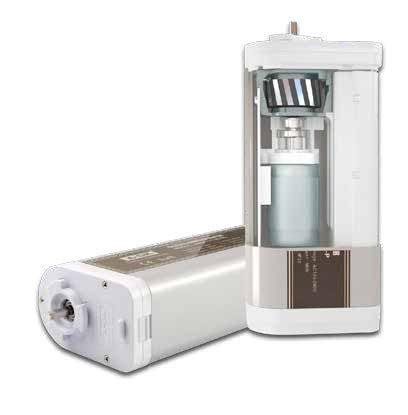

| UM95 | AC Magnetic levitation motor | UM95-1/100-ML-P | 1N.m | 16cm/s | 215.5×95×56mm (L×W×H) | 96W |
✔ Speed adjustable
✔ Stop on block
✔ Various control options
✔ Touch to go
✔ Wide Voltage power supply
✔ Over-voltage protection
✔ Group control
✔ Manual switch function
✔ Limit settings memory
✔ Flexible super silent design
✔ Fabric rebound journey correction
✔ Support multiple motor online working
|
| AC Five wires magnetic levitation motor | UM95-1/100-ML-GP | ||||||
| Built-in lithium battery magnetic levitation motor | UM95-1/100-ES-E | ||||||

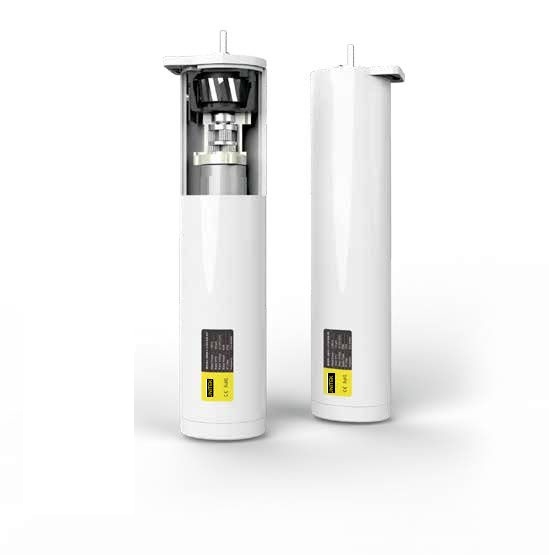

| UM68 | AC Flexible silent curtain motor | UM68-1/100-EQ-P | 1N.m | 16cm/s | 316×68×53mm (L×W×H) | 72W |
✔ Speed adjustable
✔ Stop on block
✔ Various control options
✔ Touch motion
✔ Wide voltage power supply
✔ High voltage control
✔ Group control
✔ Manual switch function
✔ Memory function
✔ Flexible super silent design
✔ Fabric rebound journey correction
|
| AC 5 Wire Flexible silent curtain motor | UM68-1/100-EQ-GP | 1N.m | 16cm/s | 316×68×53mm (L×W×H) | 72W | ||
| Mechanical AC External curtain motor | UM68-1.5/100-EM-QP | 1.5N.m | 16cm/s | 316×68×53mm (L×W×H) | 65W | ||
| AC curtain motor | UM68-1.5/100-EM-P | 1.5N.m | 16cm/s | 316×68×53mm (L×W×H) | 65W | ||
| Double battery curtain motor | UM68-1.5/80-EM-GP | 1.5N.m | 12cm/s | 316×68×53mm (L×W×H) | 65W | ||
| Double AC Flexible quite curtain | UM68-2/80-EM-QP | 2N.m | 12cm/s | 316×68×53mm (L×W×H) | 65W | ||
| Canopy no clutch curtain motor | UM68-2/80-EC-P | 2N.m | 12cm/s | 316×68×53mm (L×W×H) | 65W | ||
| AC 5 wire Flexible silent curtain | UM68-2/80-EM-GP | 2N.m | 12cm/s | 316×68×53mm (L×W×H) | 65W | ||
| AC Flexible quite curtain motor | UM68-2/80-EM-P | 2N.m | 12cm/s | 316×68×53mm (L×W×H) | 65W | ||

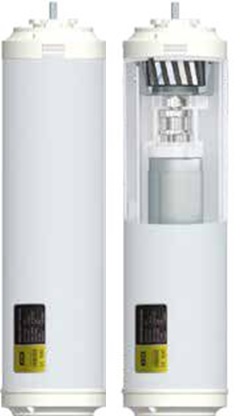

| UM70 | AC Flexible quiet curtain motor | UM70-1/100-EQ-P | 1N.m | 16cm/s | ⌀70×281.5(L)mm | 72W |
✔ Speed adjustable
✔ Stop on block
✔ Various control options
✔ Touch to go
✔ Group control
✔ Limit setting memory
✔ Memory Function
✔ Flexible super silent design
✔ Fabric rebound journey correction
✔ Over-voltage protection
|
| AC Flexible quiet curtain motor | UM70-2/80-EM-P | 2N.m | 12cm/s | ⌀70×281.5(L)mm | 65W |
| Products Model | Rated Torque | Running Speed | Radio Frequency | Running Noise | Minimum Width | Maximum Width | Rated Current | Rated Voltage | IP Level | Running Time | Working Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|

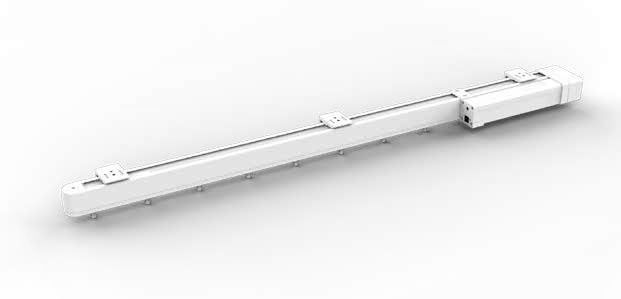

| UMC50 | 1.5Nm | 8-12cm/s | 433.92MHz | 40dB | 0.8m | 6m | 0.8A | 14.9W | 20IP | >4min | -20°C~+50°C |
| Products Name | Model | Rated Torque | Speed | Safe Load | Rated Voltage | IP Level | Motor Size | Rated Power | Functions |
|---|---|---|---|---|---|---|---|---|---|

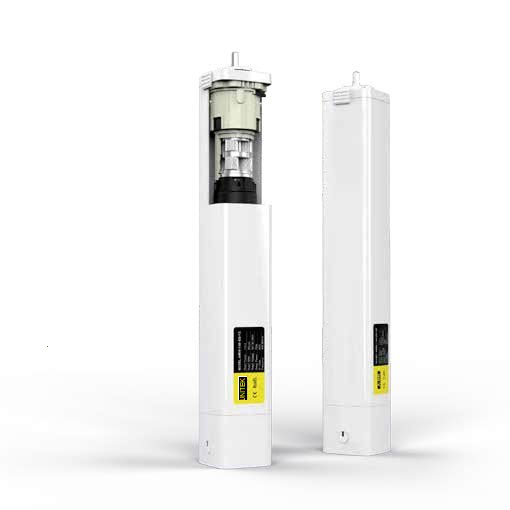

| AC Flexible Quiet Curtain Motor | UM50-1.2/100-EM-P | 1.2Nm | 12cm/s | 75KG | 65W | IP20 | 320×50×50mm (L×W×H) | AC100-240V 50/60Hz |
✔Adjustable Running Speed
✔Stop on Block
✔Various Control Options
✔Touch to Go
✔Wide Voltage Supply Power
✔Support Multiple Motors Online Working
✔Support Manual Operation When Power Off
✔Remembered Stroke Automatically Setting
✔Flexible Super Silent Design
✔Fabric Rebound Journey Correction
✔Automatic Memory Stroke Function When Power is Off
|
| AC Strong Electric Quiet Curtain Motor | UM50-1.2/100-EM-QP | ||||||||
| AC 5 Wire Flexible Quiet Curtain Motor | UM50-1.2/100-EM-QM | ||||||||
| AC Flexible Quiet Wi-Fi Curtain Motor | UM50-1.2/100-EM-PW | ||||||||
| AC Flexible Quiet ZIGBEE Curtain Motor | UM50-1.2/100-EM-PZ | ||||||||
| AC Flexible Quiet Bluetooth Curtain Motor | UM50-1.2/100-EM-PB |
| Products Name | Model | Rated Torque | Speed | Motor Size | Rated Voltage | Rated Power | IP Class | Functions |
|---|---|---|---|---|---|---|---|---|
| AC110-240V input Flexible quiet curtain motor | AM75-1/100-ES | 1.5N.m | 16cm/s | 316×68×53mm (L×W×H) | DC14.8V | 65W | IP20 |
✔Speed adjustable
✔Manual switch function
✔Touch to go
✔Fabric rebound journey correction
✔Group control
✔Various control options
✔Flexible super silent design
✔Support multiple motors online working
✔Stop on block
✔Limit settings memory
✔External Lithium battery
|
| Products Name | Model | Product Dimension | Output Voltage | Battery Capacity | Voltage of Charging | Max Current | Working Temp |
|---|---|---|---|---|---|---|---|
| Lithium Battery | AC702-01 | 165×85×23mm | DC14.8V | 5200mAH | 16.8V | 4A | -40°C ~ +85°C |
| Products Name | Model | Rated Torque | Speed | Motor Size | Rated Voltage | Rated Power | IP Class | Functions |
|---|---|---|---|---|---|---|---|---|

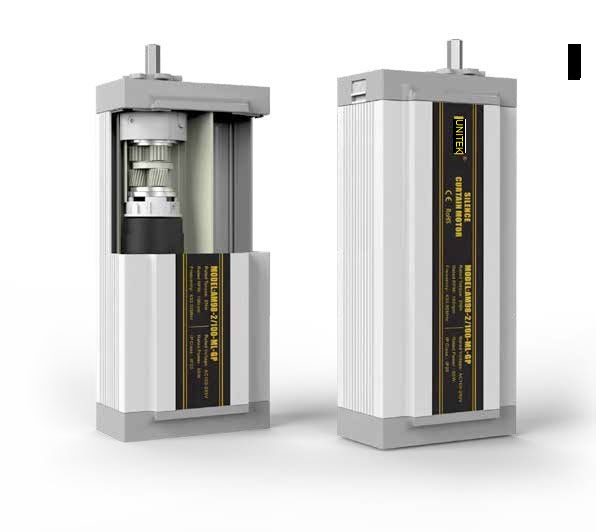

| AC Magnetic levitation motor | UM98-1.5/100-ML-P | 1.5N.m | 16cm/s | 257×96×57 mm (L×W×H) | AC100-240V 50/60Hz | 65W | IP20 |
✔ Speed adjustable ✔ Stop on block ✔ Various control options ✔ Touch to go ✔ Wide Voltage power supply ✔ Over-voltage protection ✔ Group control ✔ Manual Switch function ✔ Limit settings memory ✔ Flexible super silent design ✔ Fabric rebound journey correction ✔ Soft start and soft stop |
| Built-in battery magnetic levitation motor | UM98-1.5/100-ML-GP | 1.5N.m | 16cm/s | 257×96×57 mm (L×W×H) | AC100-240V 50/60Hz | 65W |

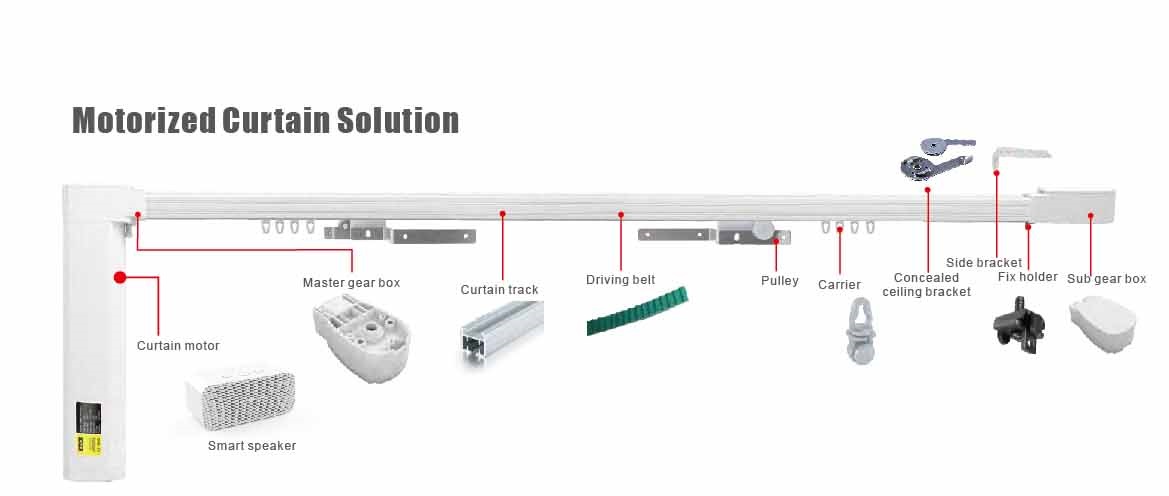

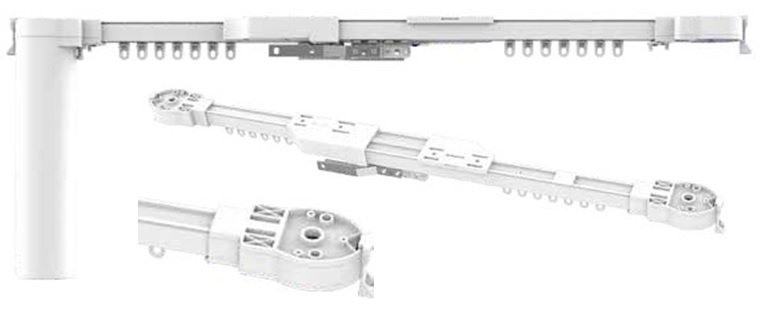

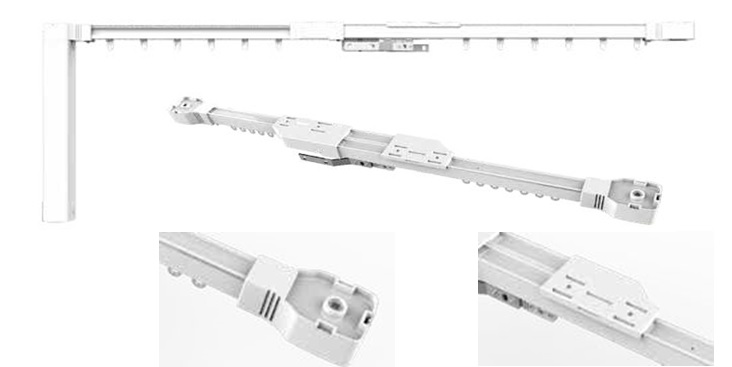

Motorized Curtain Solution:
(Remote control, Pull with hands, Wall type switch, Flexibly control)
- Convenient installation.
- Electromotive dimming.
- Remote control pull with hands wall type switch flexibly controlled.
- The curtain can be adjusted its angle at any position.
- The curtain can be stacked as single side or two sides.
- For heavy curtain like PVC aluminum alloy.
- For a variety of curtain type.
