UM45MM AC Tubular Motor

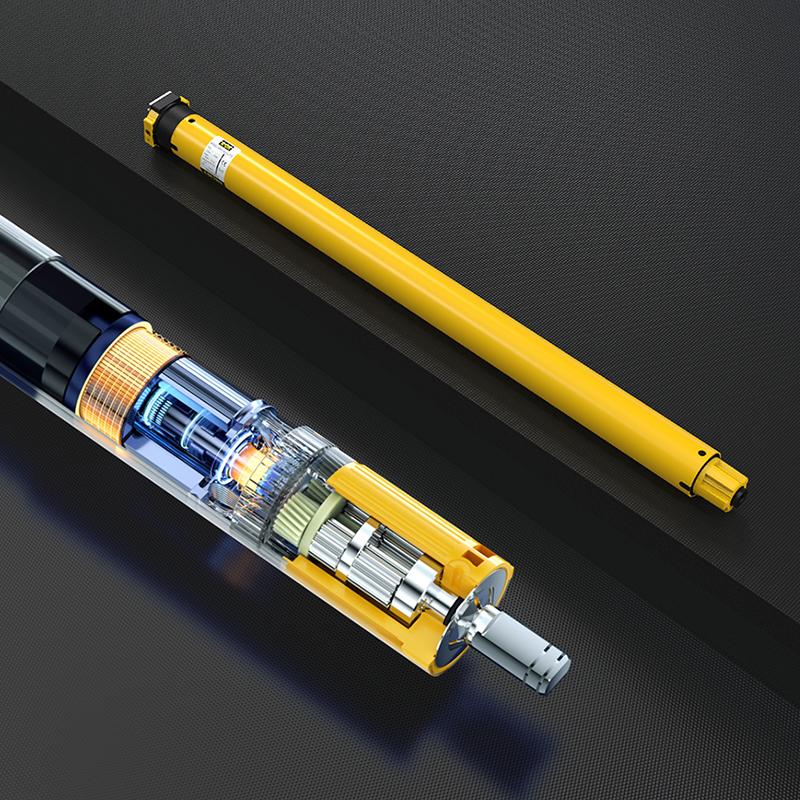

Motor

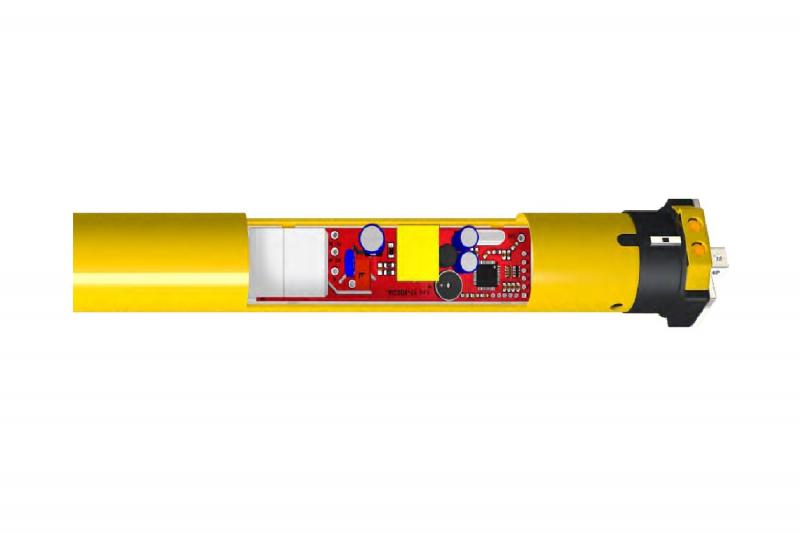

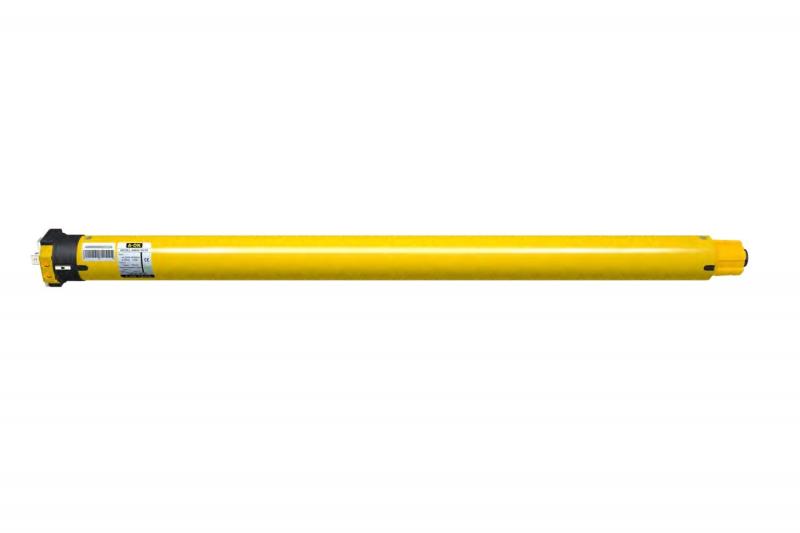

Thumbnail 1 Thumbnail 2 Thumbnail 3

UM45 AC Multiple Electronic Limit Super Silent Tubular Motor

UM45 multiple electronic limit tubular motor mainly applied to high-end projection screen, roller blinds etc, especially for high position application. The Tube is applied with mute system which effectively reduces vibration and noise.

Brand:Unitek Motor
Item No.:UM45
Color:Yellow or Custom
Lead Time:30 days (Unitek standard)
Order (MOQ):1000 PCS
Warranty:up to 5 years
Certificate:CE/CB/TUV/C-TICK/...

Product Details

UM45 AC Multiple Electronic Limit Super Silent Tubular Motor

UM45 Multiple Electronic Limit Tubular Motor is a Super Silent AC Tubular Motor. When opened, the fabric is flat without ripple and sagging. After the fabric is recovered, it can keep the original appearance of the lighting roof steel structure. After rolling up, it has good concealment and integrates with architectural decoration, and the decoration effect is simple and clear, so as to maintain the visual requirements of designers for space.

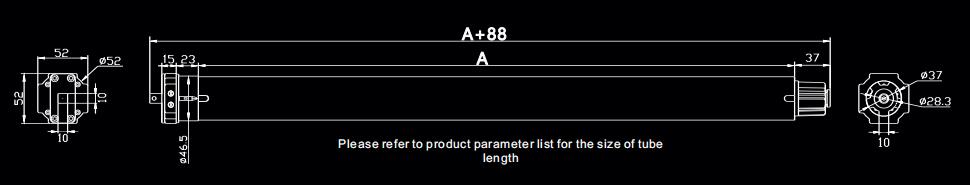

Specifications:
Model No. Rated Torque Rated RPM Motor Diameter Tube Length A Rated Voltage Rated Power Rated Current IP Class Built-Chip
230V AC 50Hz
UM45-3/28-QMEL 3N.m 28rpm 45mm 630mm 230V 85W 0.4A IP44 RF
UM45-6/28-QMEL 6N.m 28rpm 45mm 630mm 230V 115W 0.5A IP44 RF
UM45-10/13-QMEL 10N.m 13rpm 45mm 630mm 230V 115W 0.5A IP44 RF
120V AC 60Hz
UM45-3/28-QMEL 3N.m 28rpm 45mm 630mm 230V 120W 1A IP44 RF
UM45-6/28-QMEL 6N.m 28rpm 45mm 630mm 120V 130W 1.1A IP44 RF
UM45-10/13-QMEL 10N.m 13rpm 45mm 630mm 120V 130W 1.1A IP44 RF

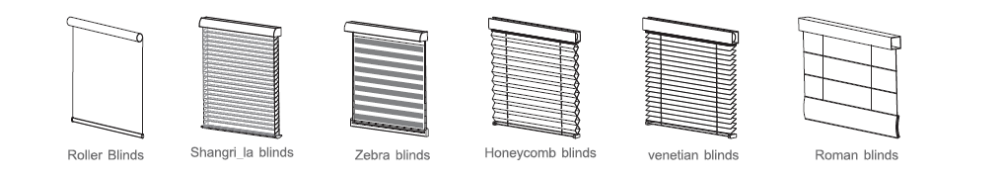

Applications:

UM45 multiple electronic limit super quiet tubular motor mainly applied to high-end projection screen, roller blinds etc, especially for high position application. Concise, beautiful and generous, the motor generates low heat, can work continuously for a long time, and there is no thermal protection time limit. It is compatible with all Unitek control systems.

Features:

  1. The limit is applied with maintenance-free pure copper wire rod and nut.and the stroke and angle can be adjusted fexibly.lt is easy to take off.land and locate precisely.
  2. The Tube is applied with mute system which effectively reduces vibration and noise.
  3. lt is easy to be adjusted and installed.
  4. The super quite tube motor is equipped whh buih-in protection device to automatically avoid damage due to overload.

Controling:

Wireless remote control: operate with remote control, Easy operation and adjustment

Multi-controlling available in motors, please contact us for any enquires and technical help.
