Unitek Stage Curtain Specification
Product Overview
UTT Motor curtain system consists of UTT Motor, crawler curtain track and control system. The motor provides power for the track; the control mode is flexible, which can realize wireless remote control, infrared remote control, wind control, optical control and intelligent central control; Customers choose according to their own needs. UTT Motor has beautiful appearance, compact structure, stable performance and durability. It is suitable for opening and closing curtain, folding ceiling system and stage curtain.
Product Features
- Built in receiver.
- Automatic travel positioning.
- Large torque and constant speed.
- The control mode is flexible, which can realize single control, group control and group control.
- It can be used as arc rail and can be equipped with hole belt or tooth belt.

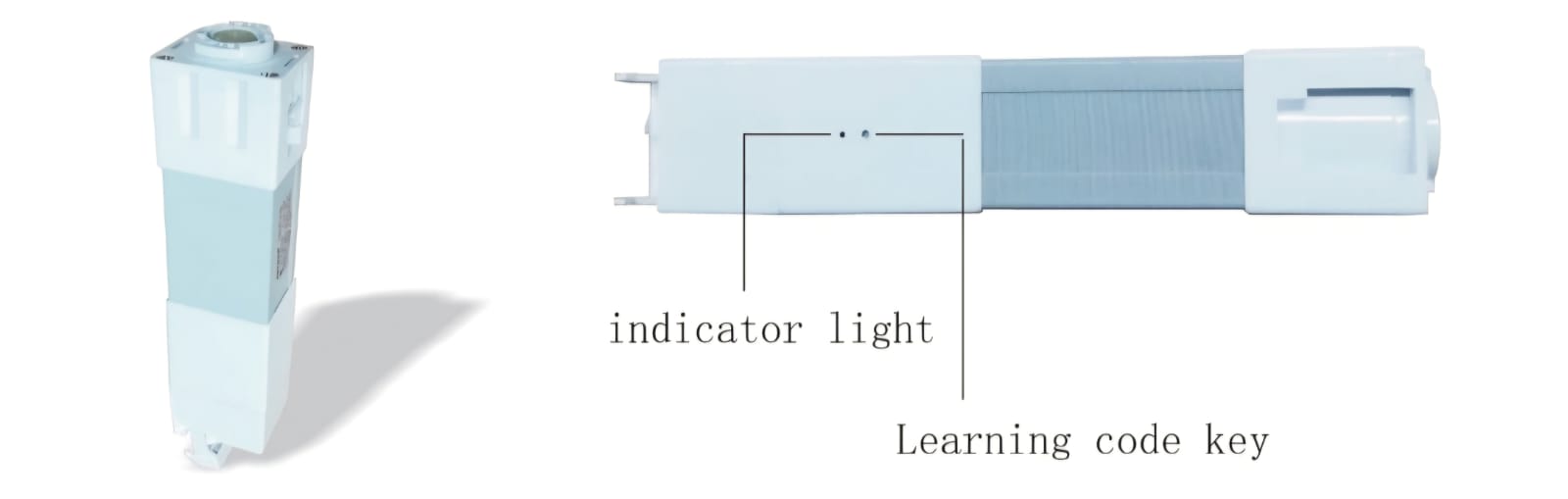

Function Description of Learning Code Key
1. Code Matching
Press and hold the motor learning code key for about 3 seconds, the indicator light will be on, and then release it. Press the left or right selection key of the remote control to select the remote control channel. After the remote control channel is confirmed, press the code-reading key on the back of the remote control, and the motor indicator light goes out, indicating that the code matching is successful.
2. Delete Code
Press and hold the motor learning code key for about 3 seconds, the indicator light will be on, and then release it; Press and hold the motor learning code key again for about 7 seconds, and the motor indicator light goes out, indicating that the remote control channel recorded by the motor is deleted.
3. Reverse
Press and hold the motor learning code key for about 11 seconds until the motor indicator flashes. Release the key and the motor will run in the reverse direction.
Model and Specification
| Parameter | Specification Details (2.5Nm, Main engine/auxiliary engine) |
|---|---|
| TYPE | UTT Motor |
| VOLTAGE | 220V/50Hz |
| CURRENT | 0.26A |
| POWER | 2.5Nm |
| LOAD CAPACITY | 100Kg |
| SPEED | 90r/min |
| WEIGHT | 1.45Kg |
| MOTOR SIZE | 235 × 50 × 60 mm |
| CURTAIN SIZE | Width 16000 × 8000 Height mm |
Wiring Diagrams

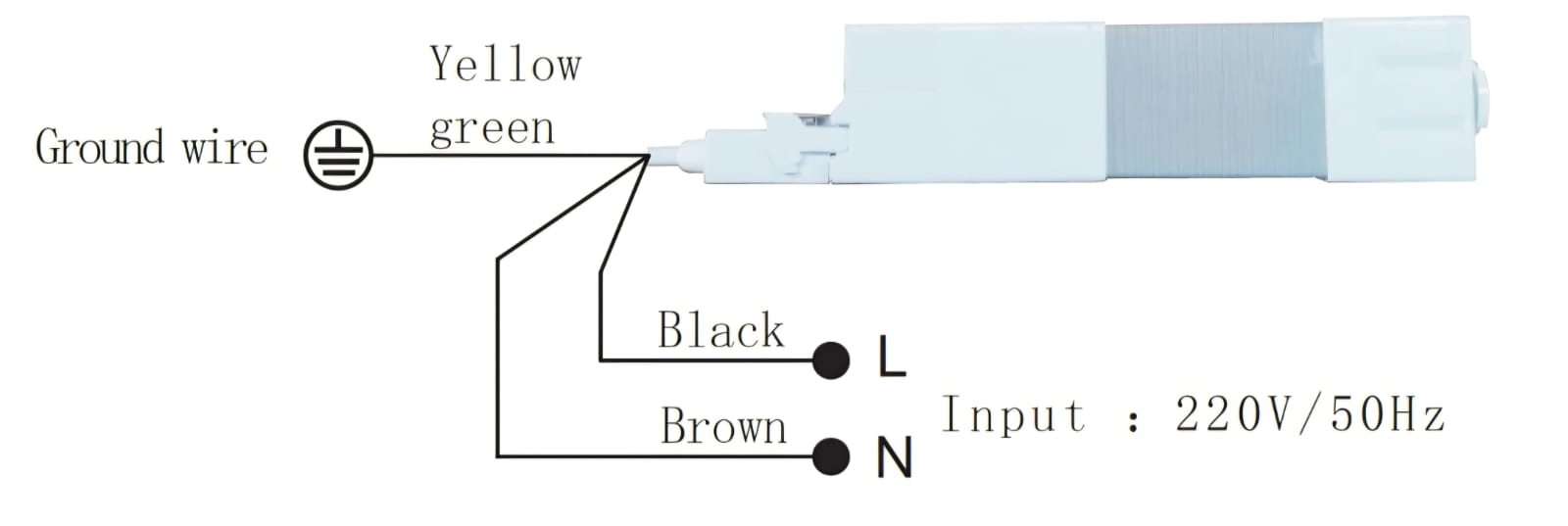

Single Machine Wiring Diagram

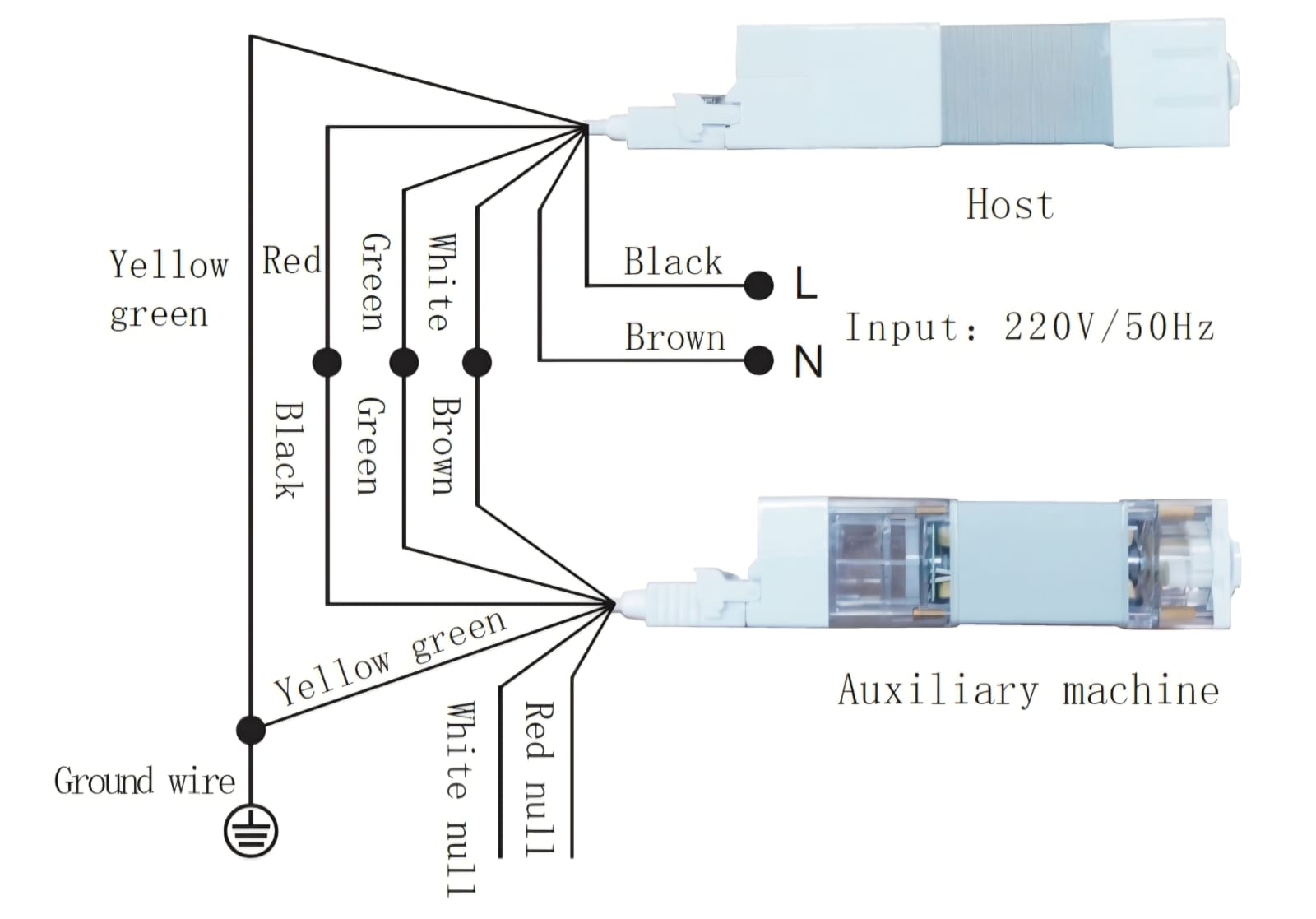

Double Machine Wiring Diagram
Intelligent Central Control

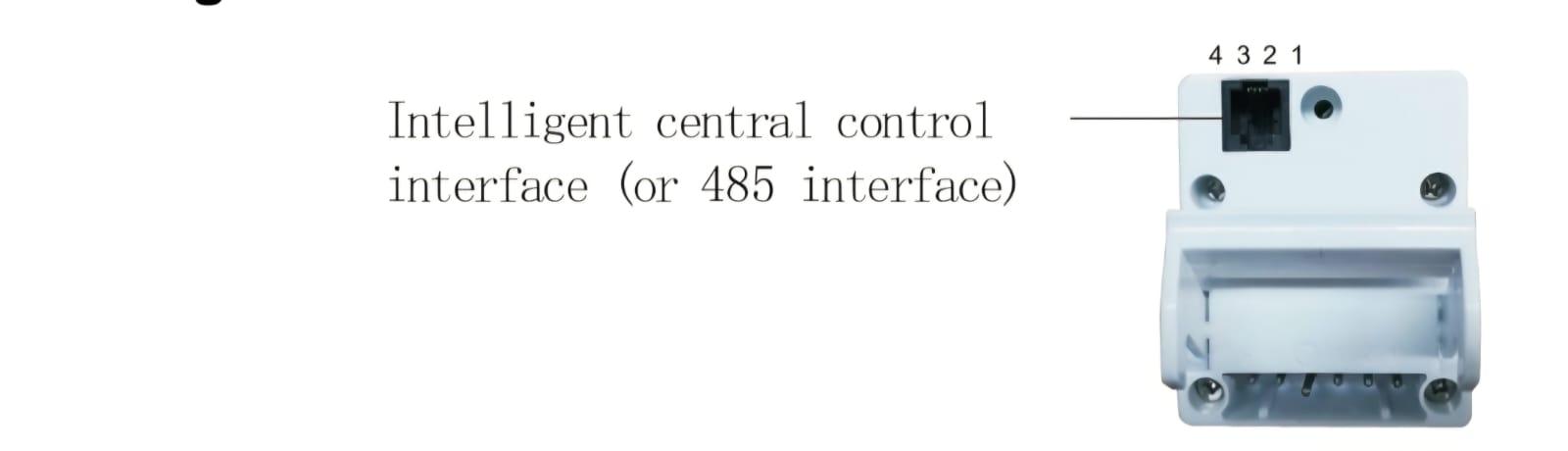

Intelligent central control interface (or 485 interface). Dry contact mode, contact time is more than 0.5 seconds. 485 mode, the agreement is subject to our agreement. The customer has a special agreement, which can be stated when ordering or customized.
The following three dry contact control modes are available for customers to choose, and the customer shall indicate A, B, or C when ordering.
| Intelligent weak current Control mode A | Intelligent weak current Control mode B | Intelligent weak current Control mode C |
|---|---|---|
|
1: common 1-2: stop 1-3: close 1-4: open |
1: common 1-3: stop 1-4: close 1-3-4: open |
1: common First 1-2: Close → Second 1-2: Stop → First 1-2: Close Second 1-3: Stop First 1-3: open → Second 1-2: stop → First 1-3: open Second 1-3: Stop |
Connection Between Motor and Track
The transmission box assembled at both ends of the crawler curtain track specially used with the motor, the main transmission box connected with the motor and the auxiliary transmission box at the other end; the operation method of connecting the motor to the track is as follows:

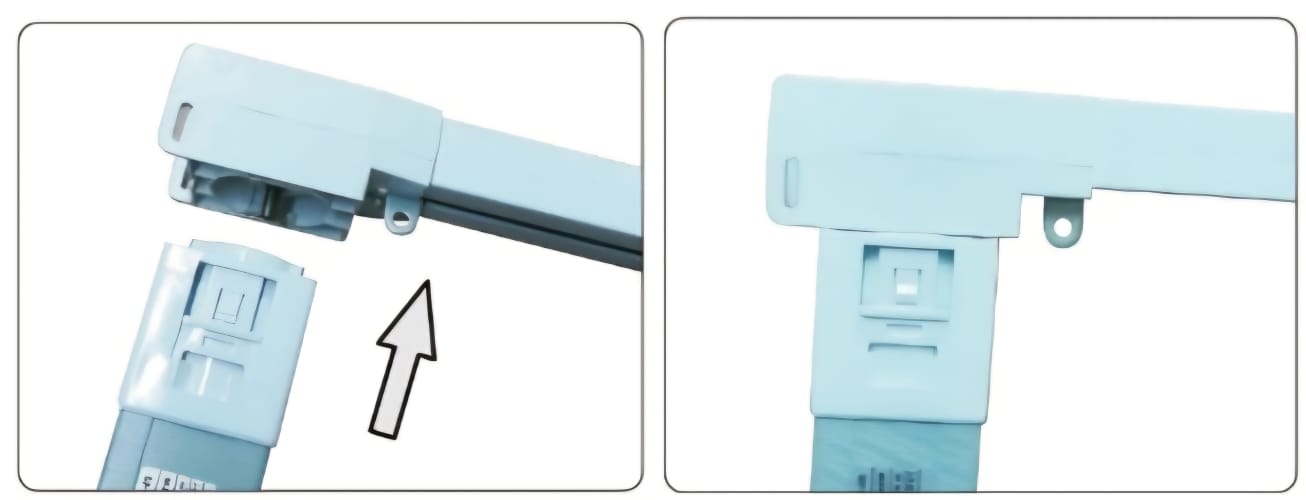

- Put the motor vertically 90° into the main transmission box.

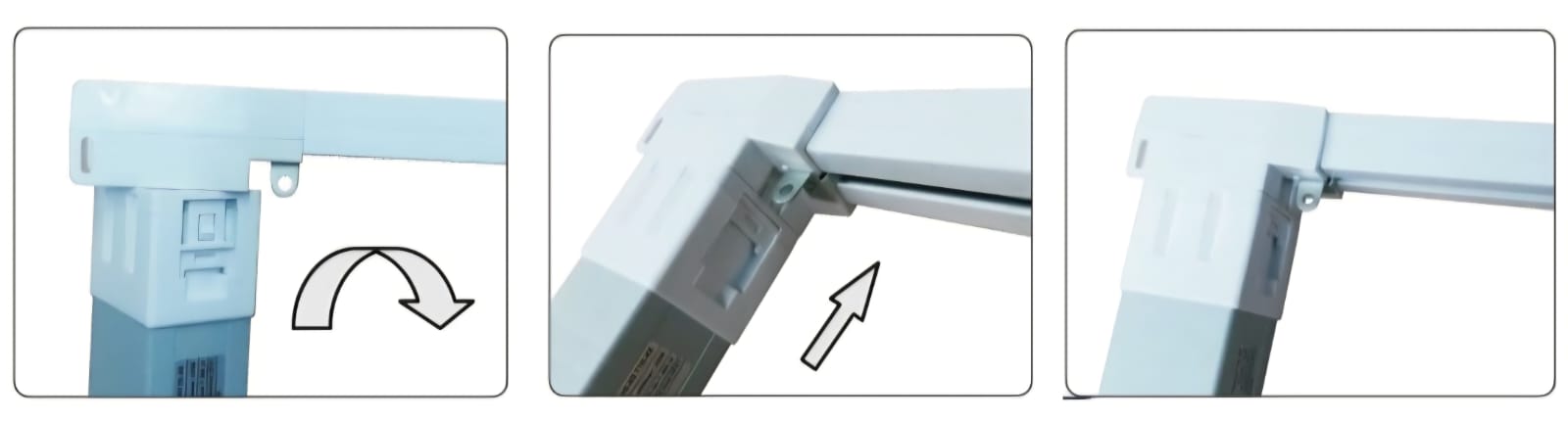

- Rotate the motor 90° clockwise.
- After the motor rotates in place, push the clamp bolt into the clamping position of the main transmission box. After confirming that the clamp bolt is pushed in place, the connection between the motor and the transmission box is completed.
